Small flour mill Plansifter
Brief Introduction:
Small flour mill Plansifter for sifting.
Open and closed compartment designs are available,To sift and classify material according to the particle size,Widely used in the flour mill, rice mill, feed mill,Also used in Chemical, Medical, and Other industries
Product Detail
Product Tags
Product Description

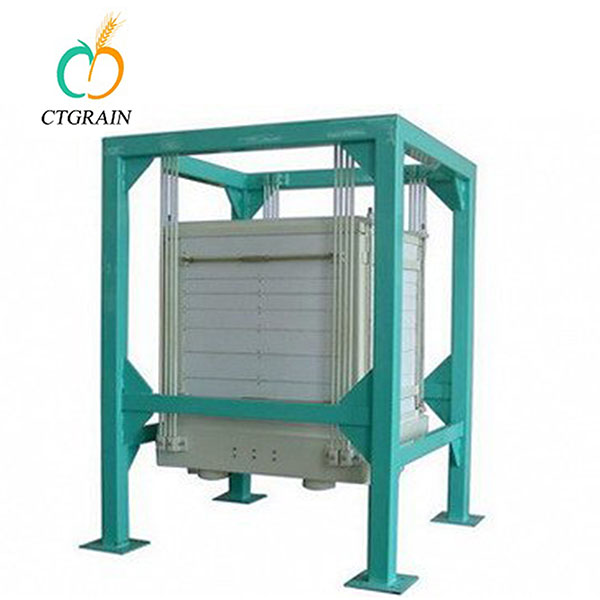

Small flour mill Plansifter/single Section Plansifter
Product Application
The machine for sifting, To sift and classify material according to the particle size. Widely used in the flour mill, rice mill, feed mill, Also used in Chemical, Medical, and Other industries.
Main Features
•Open and closed compartment designs are available
•6-12 Sieve frames arrangement
•Integrated vertical and horizontal compressing and locking mechanism
•Optimized rotating radius and speed
•Fiberglass rod suspension with stainless steel rope for safety
•Small footprint and flexible applications
•Laser cutting applies to sheet metal components for quality and accuracy
•Carbon dioxide gas shielded welding workmanship
•CNC machining centers ensure precise fabrication
•Powder coated parts and components for best quality and duration
•Simple structure in linear type, easy in installation and maintenance.
• Adopting advanced world famous brand components in pneumatic parts, electric parts, and operation parts.
•High-pressure double crank to control the die opening and closing.
•Running in a high automatization and intellectualization, no pollution
•Apply a linker to connect with the air conveyor, which can directly inline with the filling machine

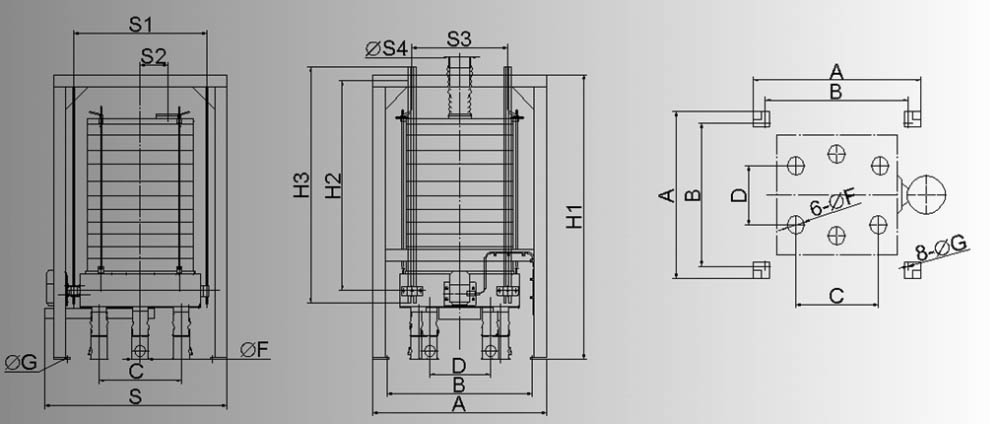

Specification
| Specification | |||||||
| Parameter | Shape Size | Power | Capacity | Weight | Rotary | Sifting Area | Diameter |
| Type | L x W x H (mm) | KW | t/h | kg | r/min | m2 | mm |
| FSFJ1x10x70 | 1250x1120x192 | 0.75 | 1.5-2 | 400 | 290 | 2.8 | 35 |
| FSFJ1x10x83 | 1390x1280x192 | 0.75 | 2-3 | 470 | 290 | 4.5 | 40 |
| FSFJ1x10x10 | 1580x1480x200 | 1.1 | 3-4 | 570 | 290 | 6.4 | 40 |
| FSFJ1x10x12 | 1620x1620x217 | 1.1 | 4-5 | 800 | 290 | 7.6 | 40 |
Working Principle

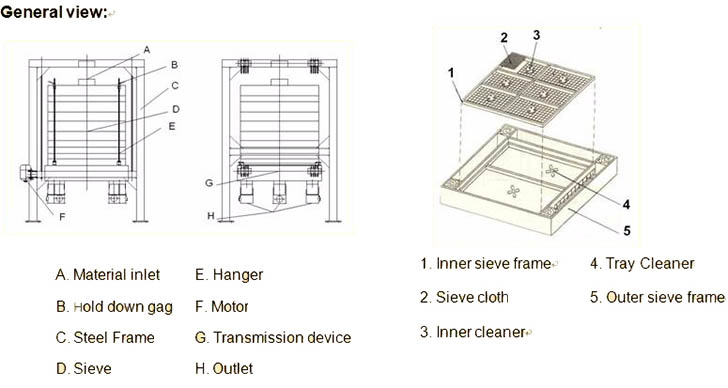

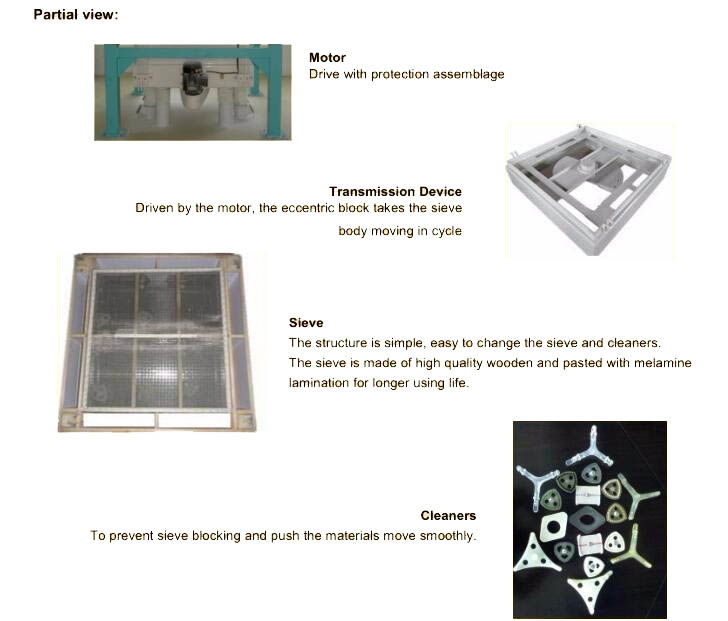

The Sifter (Mono-section Plansifter sieve frame) is driven by a motor installed under the main frame to do plane rotary motion through the eccentric block. The material is fed into the inlet and flows down step by step according to respective design for different materials, and in the same time it is separated to several streams according to the particle size. The material can be separated into max. four types material. The flow sheet can be designed by different requirements
Note
- The detailed cleaning and milling flow sheets could be designed following customers special requirements and the plant location.
- The wheat silos and flour and bran warehouse are excluded from the above.
- For more information or other models, please contact us.
