Lower Density Materials Discharger

Product Description

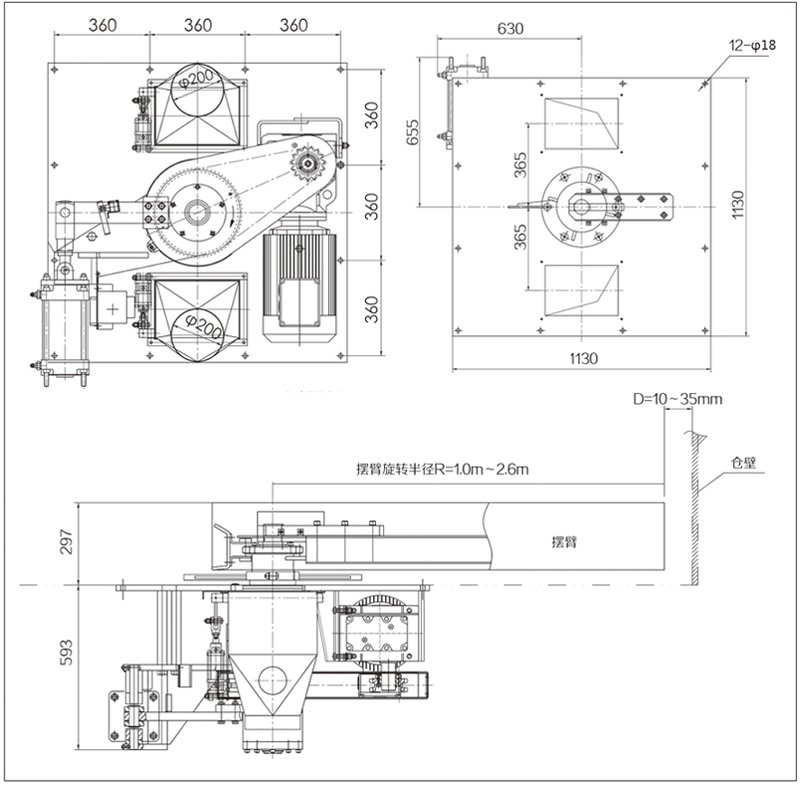

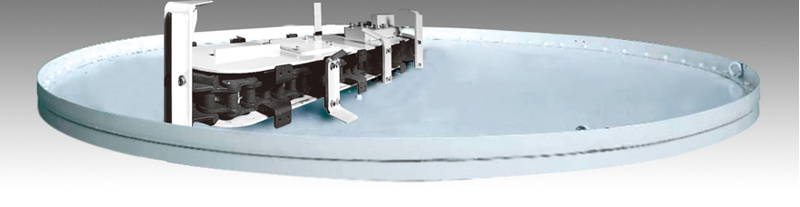

1.It is difficult to discharge the materials from the flatbottomed silo, especially for the low density and the poor flowability materials, which are more difficult to discharge. This machine can solve the problem very well. 2.This machine is made of one wear-resistant chain and solid body with two flap spout by pneumatic. The transmission is done by the reduce motor and a special damper driving a double concentric shaft, which drive the chain with different scraper uniform and cantilever to move along the silo wall. This can discharge the material smoothley.This machine can work alone or for long-range automatic control. 3.Technical detail   Diameter of the silo 2400-5200mm   Power 5.5kw 7.5kw 11kw   Capacity 18-20T/h   Weight 800kg
