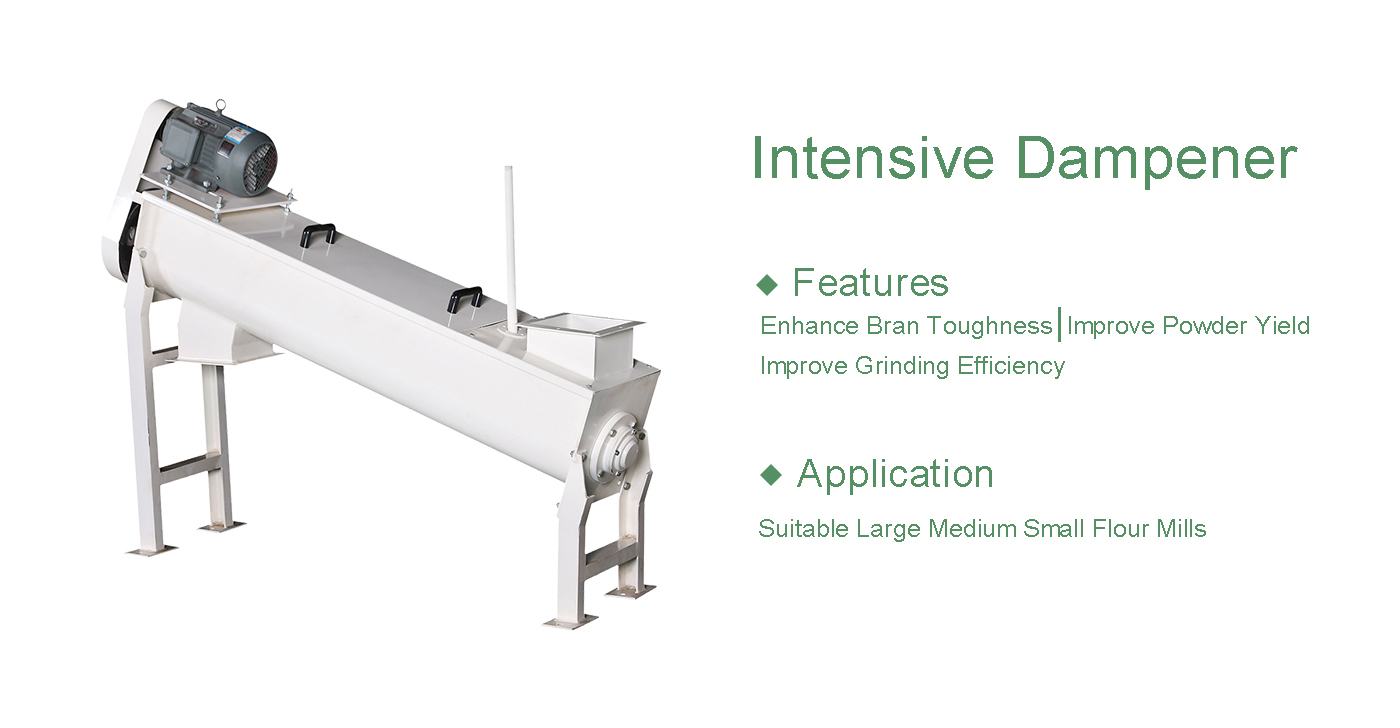

Intensive Dampener
Brief Introduction:
The Intensive Dampener is the main equipment for wheat water regulation in the process of wheat cleaning in flour mills.It can stabilize the wheat dampening quantity, ensure the dampening of wheat grain evenly, improve the grinding performance, enhance the bran toughness, reduce the endosperm strength and reduce the adhesion of bran and endosperm which is beneficial to improve the efficiency of grinding and powder sieving.
Product Detail
Product Tags
Product video
Technical Parameter List：
| Type | Capacity(t/h) | Diameter(mm) | Length(mm) | Max. Moisture(%) | Precision(%) | Power(kw) | Weight(kg) | Shape Size(LxWxH)(mm) |
| FZSQ25×125 | 5 | 250 | 1250 | 4 | ≤±0.5 | 2.2 | 420 | 1535*420*1688 |
| FZSQ32×180 | 10 | 320 | 1800 | 4 | ≤±0.5 | 3 | 460 | 2110*490*1760 |
| FZSQ40×200 | 15 | 400 | 2000 | 4 | ≤±0.5 | 5.5 | 500 | 2325*570*2050 |
| FZSQ40×250 | 20 | 400 | 2500 | 4 | ≤±0.5 | 7.5 | 550 | 2825*570*2140 |
| FZSQ50×300 | 30 | 500 | 3000 | 4 | ≤±0.5 | 11 | 1000 | 3450*710*2200 |
Fan Blades
When the paddle flips the material, the material is pushed forward and flow down by gravity to be mixed, so that the water evenly distributes in each wheat grain
Dampening System
Water through the inlet of the floating ball valve flows into the constant-level water tank, and through the cut-off valve, solenoid valve, automatic control valve, flow control valve, rotor flowmeter from the discharging tube flows into the mixer’s water nozzle to begin the process of dampening.
The Upper Lid Can Be Open
The upper lid can be opened at any time to check the dampening condition.
Wheat Water Regulation
The Intensive Dampener is the main equipment for wheat water regulation in the process of wheat cleaning in flour mills. It can stabilize the wheat dampening quantity, ensure the dampening of the wheat grain evenly, improve the grinding performance, enhance the bran toughness, reduce the endosperm strength and reduce the adhesion of bran and endosperm which is beneficial to improve the efficiency of grinding and powder sieving. Besides, it is helpful to improve the powder yield and pink quality. It’s suitable for technical transformation in large, medium, and small flour mills and the selection of new flour mills.
Features
The dampener has induction switch in the feeding tube. when the wheat in feed tube has a certain flow, the induction switch works. At the same time, the solenoid valve of dampening system open, the water system supply water. When the feed pipe is empty, the water system will stop water supply.
